CNC Vacuum Suction Pods for Biesse Rover CNC Routers

  • Model: Biesse Vacuum Suction Pods
  • Application: Biesse Rover CNC routers
  • Brand: Biesse
  • Full size, half size and 1/3 size available in three different heights: 29mm, 48mm and 74mm
  • Product description: Biesse Rover CNC vacuum suction pods (Full size, half size and 1/3 size available in three different heights: 29mm, 48mm and 74mm) and valve insert, locating ring and gaskets.
  • INQUIRY EMAIL

biesse vacuum pods

CNC Vacuum Suction Pods for Biesse Rover CNC Routers

These vacuum pods and cups are for Biesse CNC routers, replacement pod for using with Biesse Rover, Biesse Point to Point machines.
With these cnc vacuum pods, you can do solid wood work or edge detail by raising the material off of the table. CNC flat table vacuum cup for your Biesse Rover grid can be used to do large parts or can be sectioned off with gasket to do smaller parts.
Biesse Vacuum cups
Biesse vacuum cups are available in three different heights: 29mm, 48mm and 74mm.
Full size vacuum pods for Biesse:
145 x 135 x 48mm
146*131*48
146*132*48
146*132*75
146*131*74

Half size (1/2 Size) Biesse flat table pods:
75 x 135 x 48mm
71*131*48
75*132*48
75*132*75
75*131*74

1/3 Size Biesse cnc vacuum pods:
50 x 135 x 48mm
55*131*48
55*132*48
55*132*75
55*131*74
These vacuum cups for biesse are with valve, locating ring and gasket, also have 48mm and 72mm height for choose.

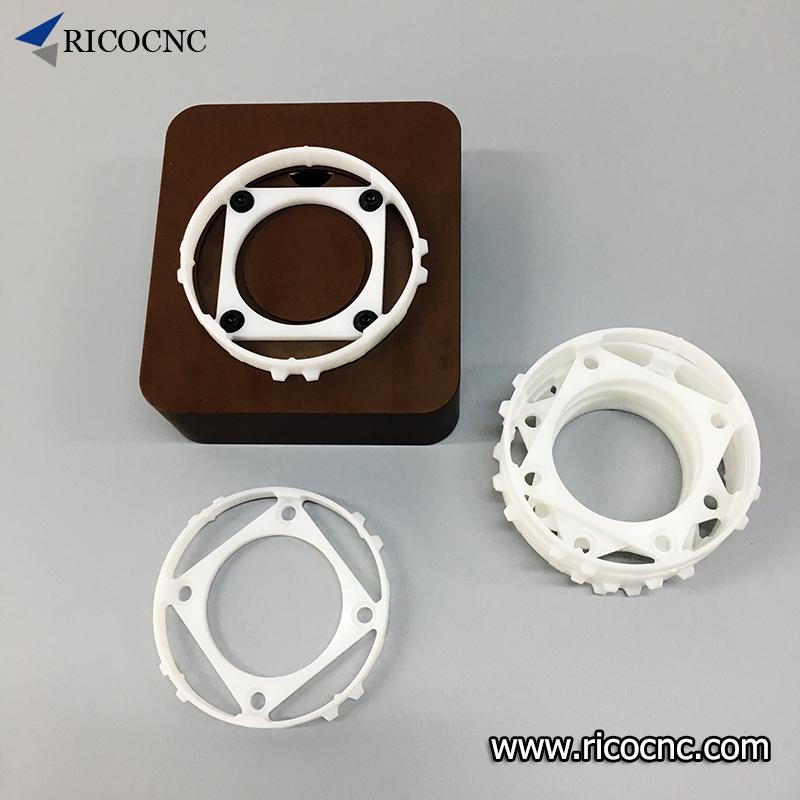

plastic locating ring for Biesse vacuum pods
The base bodies of the biesse vacuum cups are inserted into a holding fixture on a pod and rail table. The base body and holding fixture have a grating that is divided into 15° steps. Thus, it is possible to position the suction cup in different angles on the pod and rail table.

To minimize the setup time the vacuum cups are equipped with valves that only release the suction when the workpiece is placed. The vacuum cups on the remaining consoles, which are not used, simply stay on the machine. Unoccupied holding fixtures are covered with a dummy cap that helps avoiding pollution and shuts off the vacuum in this holding fixture. RicoCNC offers alternative vacuum cups. They are available in the same heights like the original vacuum cups. Thus, they can be combined at will.
Vacuum parts for BIESSE
RicoCNC is your best source for cnc spare parts, woodworking machine accessories, Schmalz cnc vacuum pods and cnc toolings. We supplied a range of cnc replacements for Anderson, Biesse, Busellato, Bulleri, CMS, CR Onsrud, Komo Machinery, IMA, Intermac, Felder, Laguna Tools, Morbidelli, Northwood, Weeke, SCM, Weinig, HolzHer, Flexicam, Multicam, Masterwood, etc.
