Limit Switch BLE17-5F-N1E Genke NPN Normal Open Proximity Sensors for CNC Router Machines

Limit Switch BLE17-5F-N1E Genke NPN Normal Open Proximity Sensors for CNC Router Machines

Item Model: BLE17-5F-N1/E
Output Model: Digital Sensor
How it works: Magnetic sensors
Sensor Category: Position Sensor
Product description: This limit switch BLE17-5F-N1/E is NPN normal open proximity sensor widely used with CNC router machines. It works as safe-guard switch and home position sensor.
INQUIRY EMAIL

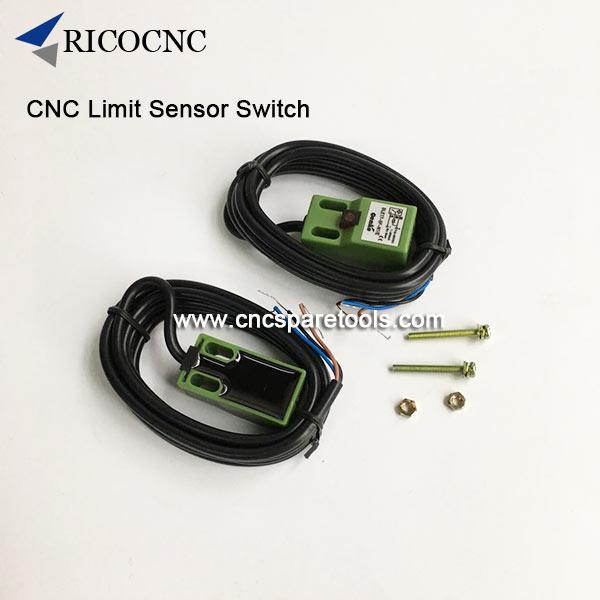

cnc limit sensor switches

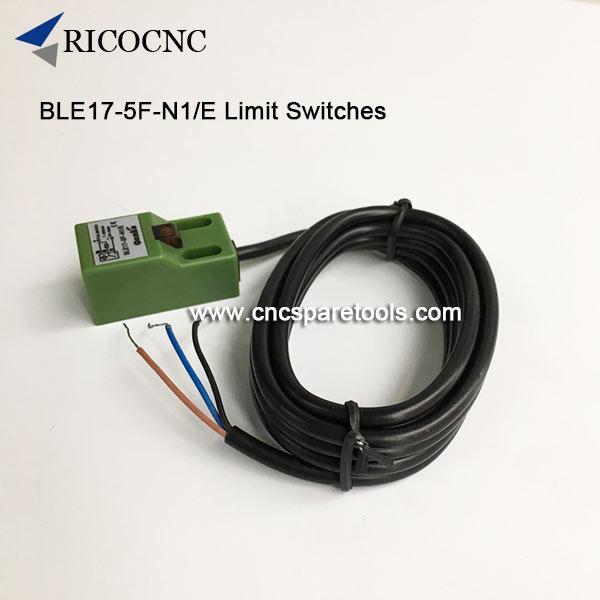

Limit Switch BLE17-5F-N1/E Genke NPN Normal Open Proximity Sensors for CNC Router Machines

This limit switch is NPN normal open proximity sensor widely used with CNC router machines. It works as safe-guard switch and home position sensor.

LE17-5F-N1/E Genke Limit Switch Features:
1, Power reverse polarity protection (DC)
2, Surge protection;
3, High temperature plastic sensor head (PPT)
4, 2 m cable output
5, LED red light
6, Protection Level IP67
7, Voltage: 10-30VDC
8, Sensing distance: 5mm
9, Cable color: Brown, Black, Blue
10, Nickel-plated brass
11, Cost-effective simple operation
12, Long life and high reliability

Other Limit Sensors & Switches supplied:

Model	Sensing distance	Output style	Contact style	Voltage	Wiring	Shape
Bi12-2B-N1	2mm	NPN	NO	10-30VDC	3 cables	column
Bi12-2B-P1	2mm	PNP	NO	10-30VDC	3 cables	column
Bi12-4F-N1	4mm	NPN	NO	10-30VDC	3 cables	column
Bi12-4F-N2	4mm	NPN	NC	10-30VDC	3 cables	column
Bi12-4F-P1	4mm	PNP	NO	10-30VDC	3 cables	column
LM12-2B-P1/H	2mm	PNP	NO	10-30VDC	Plug	column
BLE17-5F-N1/E	5mm	NPN	NO	10-30VDC	3 cables	square
BLE17-5F-P1/E	5mm	PNP	NO	10-30VDC	3 cables	square
BLE17-5F-P2/E	5mm	PNP	NC	10-30VDC	3 cables	square
LE17-5F-D1	5mm	DC 2 Wires	NO	10-30VDC	2 cables	square

BLE17-5F-P1E limit switch

Other brands limit sensor switches also are available here, such as Sick, Balluff, Omron, CHIIB SN04-N, etc.

SN04-N sensor switch

RicoCNC supplies a range of cnc router spare parts such as spindle motors, stepper motor and drivers, DSP controllers, bearings, cable chains, cnc toolings, router bits, etc.

Welcome your inquiry.
limit switches for cnc router
