CNC Router Bits

  • Single Flute Down Cut Spiral Router Bits for Acrylic Plastic Honeycomb Panel Cutting
  • Single Flute Down Cut Spiral Router Bits for Acrylic Plastic Honeycomb Panel Cutting
  • Single Flute Down Cut Spiral Router Bits for Acrylic Plastic Honeycomb Panel Cutting
Single Flute Down Cut Spiral Router Bits for Acrylic Plastic Honeycomb Panel CuttingSingle Flute Down Cut Spiral Router Bits for Acrylic Plastic Honeycomb Panel CuttingSingle Flute Down Cut Spiral Router Bits for Acrylic Plastic Honeycomb Panel Cutting

Single Flute Down Cut Spiral Router Bits for Acrylic Plastic Honeycomb Panel Cutting

  • Material: Solid Carbide
  • Model: Single Flute Down Cut Spiral Router Bits
  • Application: Acrylic Plastic Honeycomb Panel Cutting
  • Original: China
  • Product description: The single flute down cut spiral router bits use the higher quality micrograin solid carbide, resulting in clean cuts, superior surface finish and a longer tool life. Spiral down-cut router bits work
  • INQUIRY

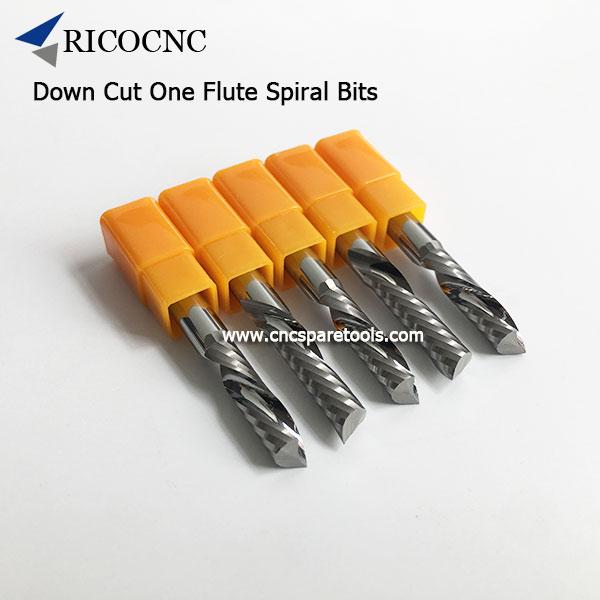

Single Flute Down Cut Spiral Router Bits for Acrylic Plastic Honeycomb Panel Cutting

The single flute down cut spiral router bits designed for maximise smooth finish with downward cut for enhanced material holding, prevent workpiece lifting during cutting. The downward spiral is especially useful to create downward chip flow and hold the part to the table during cutting. The special geometery is designed to give best edge finish on hard acrylic plastics.
Also the down-cut spiral bit uses the higher quality micrograin solid carbide, resulting in clean cuts, superior surface finish and a longer tool life.

Spiral down-cut router bits work with cnc routers, widely used for acrylic, plastic honeycomb panel cutting, wood, MDF, plywood, PVC, etc.

Single Edge 'O' Flute Downcut End Mills Sizes:

Item No.

CED(mm)

CEL(mm)

SHK(mm)

OVL(mm)

1LXD3.06

3.175

6

3.175

40

1LXD3.08

3.175

8

3.175

40

1LXD3.10

3.175

10

3.175

40

1LXD3.12

3.175

12

3.175

40

1LXD3.15

3.175

15

3.175

40

1LXD3.17

3.175

17

3.175

45

1LXD3.22

3.175

22

3.175

50

1LXD408

4

8

4

45

1LXD412

4

12

4

45

1LXD417

4

17

4

50

1LXD422

4

22

4

50

1LXD512

5

12

5

50

1LXD517

5

17

5

50

1LXD522

5

22

5

55

1LXD612

6

12

6

45

1LXD617

6

17

6

50

1LXD622

6

22

6

55

1LXD820

8

20

8

75

1LXD825

8

25

8

80

1LXD835

8

35

8

90

1LXD1025

10

25

10

80

1LXD1035

10

35

10

90

1LXD1045

10

45

10

100

1LXD1235

12

35

12

90

1LXD1245

12

45

12

100

1LXD1255

12

55

12

110


RicoCNC specialize in CNC cutter bits, solid carbide spiral router bits, plunge bits, and other industrial cutting tools such as big foam mill bits, PCD diamond bits, single flute upcut, downcut spiral, compression spiral bits, double flutes, tripple flutes bits, four flutes bits, straight flute bits, etc.

Welcome your inquiry.
